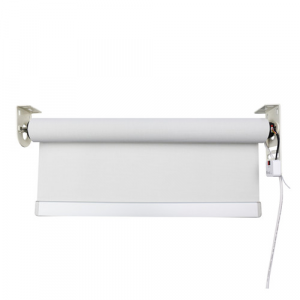

KNX Blinds Motor 220V AC controls the roller blind travel up/down, travel up/down to a specified percentage position by receiving a KNX signal.
Basic Parameters
Working voltage: 21-30V DC
Working current: 6mA/30V DC
Communication: KNX
Rated input voltage: AC220-240V (50Hz)
Rated input current: 0.9A
Cable diameter of KNX terminal: 0.6-0.8mm
Motor rotate torque: 3N.m
Motor rotate speed: 22rpm
External Environment
Working temperature: -5?~45?
Working relative humidity: =90%
Storage temperature: -20?~60?
Storage relative humidity: =93%
Specifications
Dimensions: f35×528(mm)
Net weight: 1224g (Motor) + 20g (Communication module)
Housing material: Steel (Motor) + retardant-frame PC (Communication module)
Installation: Wall hanging
Insulation rating: E
Work system: S2-3min
Protection rating (Compliant with EN 60529): IP44
