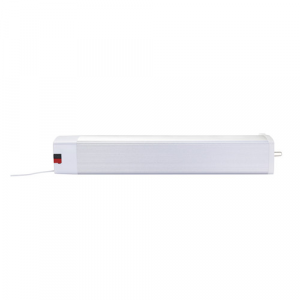

KNX Curtain Motor 220V AC / KNX Curtain Motor with Adapter is a curtain controller controlled by a KNX panel or other KNX device. The motor can be widely used at home, office, hospital and hotel etc.
Basic Parameters
Working voltage 21-30V DC
Working current 6mA/30V DC
Rated input voltage
KNX Curtain Motor 220V AC
AC100-240V (50/60Hz)
KNX Curtain Motor with Adapter
24V DC
Rated input current
KNX Curtain Motor 220V AC: 0.4A
KNX Curtain Motor with Adapter: 1.5A
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
Motor rotate torque 1.2N.m
Motor rotate speed 95rpm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 283×71×50.6(mm)
Net weight
KNX Curtain Motor 220V AC: 976g
KNX Curtain Motor with Adapter: 874g
Housing material PC, aluminum
Installation Wall hanging
Protection rating (Compliant with EN 60529) IP41
