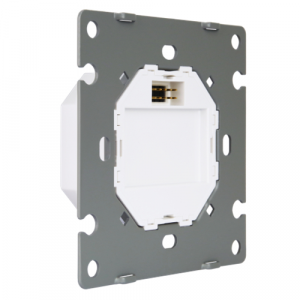

KNX Tile Series Panel Power Interface (with External Power Supply) works in conjunction with KNX Tile Display and provides working voltage and communication signals to the panel.
Basic Parameters
Working voltage: 21~30V DC
Auxiliary power supply: 20~30V DC
Communication: KNX
Cable diameter of KNX terminal: 0.6-0.8mm
External Environment
Working temperature: -5?~45?
Working relative humidity: =90%
Storage temperature: -20?~60?
Storage relative humidity: =93%
Specifications
Dimensions: 81.4×81.4×27 (mm)
Net weight: 69g
Housing material: Flame-retardant nylon, metal
Installation: Wall box
Protection rating (Compliant with EN 60529): IP20
