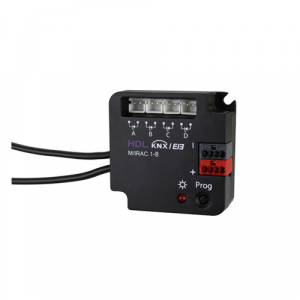

KNX Infrared Emitter is one of HDL KNX/EIB series products. The module can store up to 960 infrared codes. The first 150 infrared codes are used for general control, for example TV, DVD and other infrared receiving devices, and the latter 810 infrared codes are used for controlling AC of any brand.
Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Transmitting carrier wave frequency 38kHz±20%
Emission distance 7m
Current detection <2a
Communication KNX/EIB
Cable diameter of KNX terminal 0.6 - 0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 45mm×45mm×16mm
Net weight 60g
Housing material ABS
Installation Screw installation
Protection rating (Compliant with EN 60529) IP20
