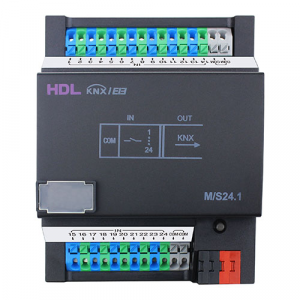

KNX 24-Zone Dry Contact Module supports 24-channel dry contact input and each of which can be individually controlled with up to 13 different control targets.
Basic Parameters
Working voltage 21~30V DC
Working current 10mA/30V DC
Communication KNX/EIB
Cable diameter KNX terminal 0.6 - 0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 90mm×72mm×64mm
Net weight 110g
Housing material Nylon
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
