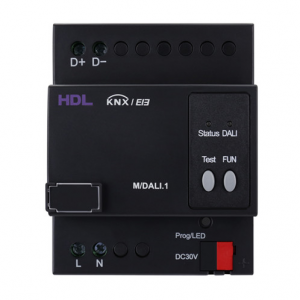

With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connectted to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.
Basic Parameters
Working voltage 21~30V DC
Working current 5mA/30V DC
Input voltage AC100-240V (50/60Hz)
DALI output 64 channels
Communication KNX
Cable diameter of KNX terminal 0.6 – 0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 241g
Housing material Nylon
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
