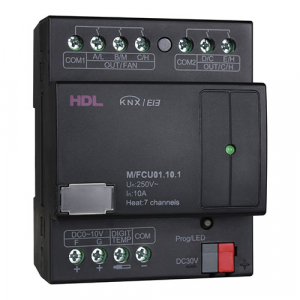

KNX HVAC Module belongs to HDL KNX/EIB series, and it supports control of heating, cooling, high/medium/low fan speed. 7 independent floor heating control channels can be set. In conjunction with digital temperature sensor, the actuator achieves precise temperature control. In addition, 5 switch output channels and 2 DC0-10V output channels can be set for staircase lights and other requirements.
Basic Parameters
Working voltage:21~30V DC
Working current:20mA/30V DC
Input voltage:120V/240V AC(50/60Hz)
Communication:KNX
Detecting temperature range:-30?~+100?
Temperature sensor:2.5m Digital Temperature Sensor (TS/C 1.0)
Communication :KNX
Output terminal :Line in, line out cable for each channel 2.5-4mm2
Output channel :5CH, 10A/CH
0-10V output:2CH, 10mA/CH
Cable diameter of KNX terminal:0.6 - 0.8mm
Electrical life time:>100000
Mechanical life time:>100000
External Environment
Working temperature:-5?~45?
Working relative humidity:=90%
Storage temperature:-20?~60?
Storage relative humidity:=93%
Specifications
Dimensions:90mm×72mm×64mm
Net weight :310g
Housing material:Frame-retardant nylon
Installation:35mm DIN rail installation
Protection rating (Compliant with EN 60529) :IP20
