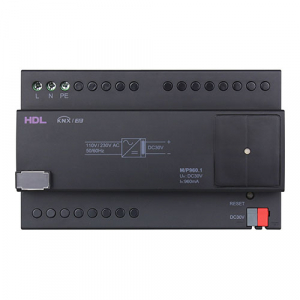

KNX 960mA Power Supply Module
model:M/P960.1
KNX 960mA Power Supply Module is fully compliant with European safety standards and KNX standard protocol. It can provide up to 960mA current to KNX/EIB bus.
¦ KNX Power Supply Module provides maximum current 960mA to KNX/EIB bus.
¦ Overload protection and over current protection.
¦ Output short circuit protection.
¦ Keep pressing the RESET button for 2 seconds to reset the device.
Basic Parameters
Input voltage AC100-240V(50/60Hz)
Output voltage 30V DC
Output current 960mA
Communication KNX
Power loss < 20%
Power on time <2s<>
User controls Button reset EIB
Green LED Output normal
Red LED Overload (I> Imax)
Cable diameter of KNX terminal 0.6 – 0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 144mm×90mm×64mm
Net weight 390g
Housing material Nylon
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
