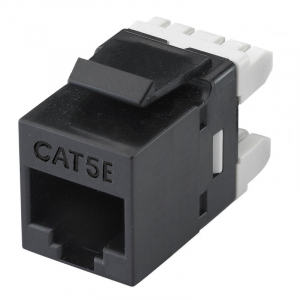

Presa Keystone RJ45 CAT 5E UTP 180°, Nero.
- Transmission properties: Category 5e
- Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
- RJ45 female, 8P8C, unshielded
- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Dual IDC type, 180 degree
- Dust cover for IDC
Electrical propeties:
- Voltage rating: 125 VAC RMS
- Current Rating: 1,5 AMP
- Contact resistance: < 100 MilliOhm
- Insulation resistance: > 1000 MOhm @ 500 VDC
- Dielectric strength: 750 VAC RMS 60Hz, 1 min
Environmental properties:
- Storage: -40° C to +85 °C
- Operation temperature: -0° C to +70 °C
Mechanical properties:
- Housing material: PC
- Insert material: Frame Retardancy PBT
- PCB material: FR-4 T¡Ü1,6mm
- Contact material: Phosphor bronze stamp PIN T¡Ü0,30mm
- IDC Contact material: Phosphor bronze T¡Ü0,50mm with tin plating
- Mating cycles RJ45: > 750 times
- Clamp: > 200 times
- IDC wire size: 23 – 26 AWG
